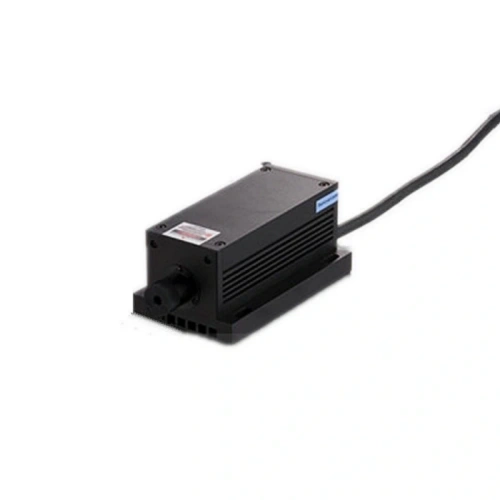

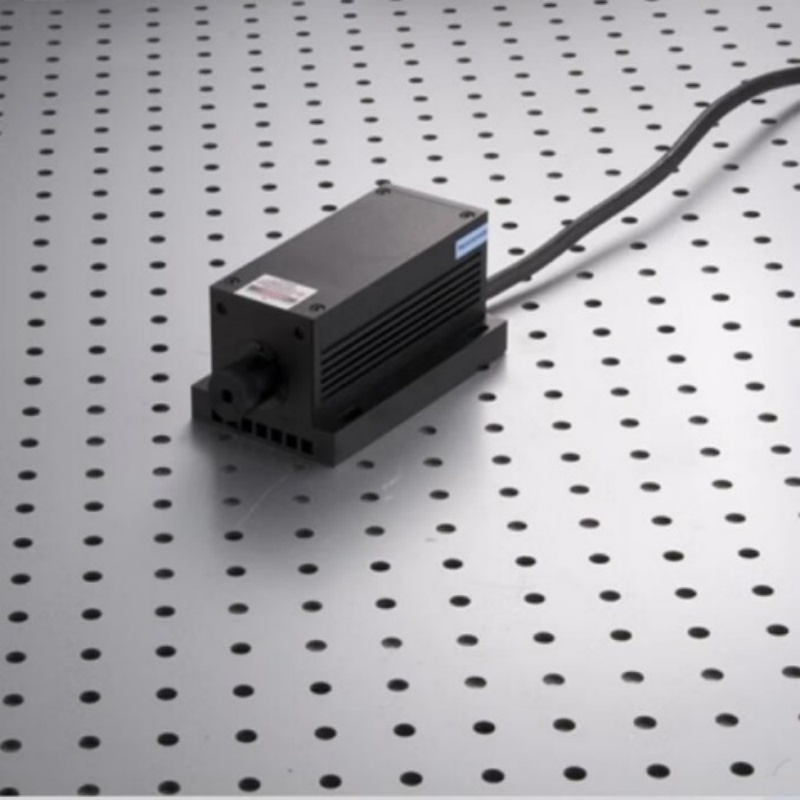

1064nm 500mW Passive Q-switched pulse laser generator digital display adjustable power supply

1064nm 500mW Passive Q-switched pulse laser generator digital display adjustable power supply

peculiarity
Passive Q-switched
repetition rate is adjustable

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR1064HX-Q
Wavelength:1064nm
Spatial Mode: TEM00
Average Output Power: 500mW
Average Power Stability : 3% per 2hrs
Single Pulse Energy: 50UJ（1-200UJ Optional）
Working Mode: Passive Q-Switched Pulse
Pulse Width : 20ns（5-50ns Optional）
Peak Power:1KW-10KW
Repeat Rate:10KHz（10Hz-50KHz Optional）
Modulation signal:0-50KHz
Beam Spot Shape:Circular .aspect.ratio<1.1:1
Pointing Stability:<0.05 mrad
Beam Diameter(1/e2):<1.5mm
Beam Divergence: <1.5 mrad
Power Stability*:<±3% per 2hrs
Beam Height:39mm
Temperature Stabilizing :TEC
Warm-up Time :5min
Beam Quality m2:<2
Operation Temperature (°C)： 20~30°C
Storage Temperature:10~50oC
MTTF** :10,000 hrs

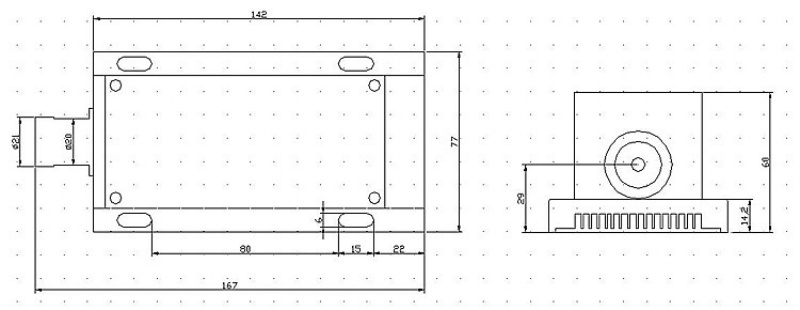

Dimensions ：167(L)x77(W)x70(H) mm
Adjustable power supply：LSR-PS-FA:178(W)x197(D)x84(H)mm3
Warranty Time 1 year

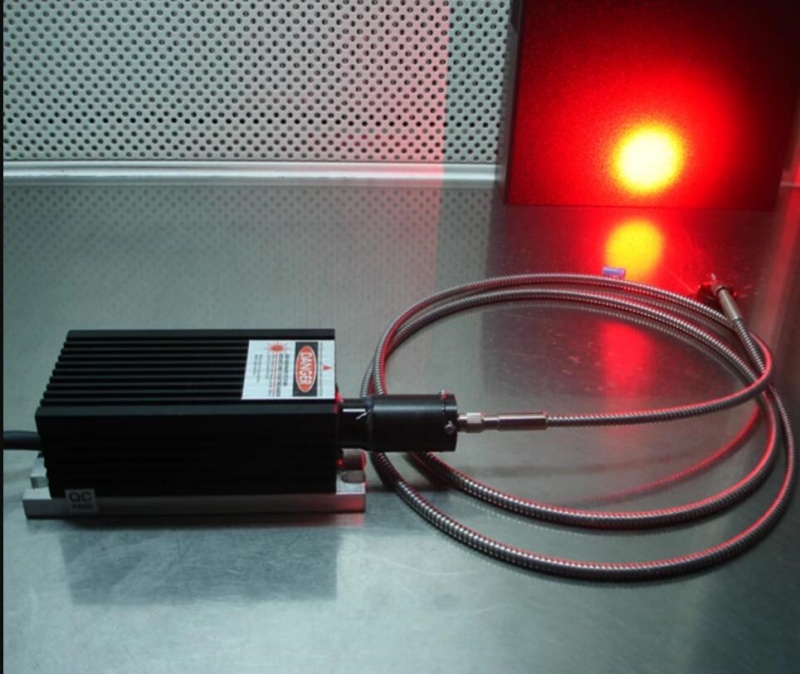

Add collimator and fiber coupling for $300
