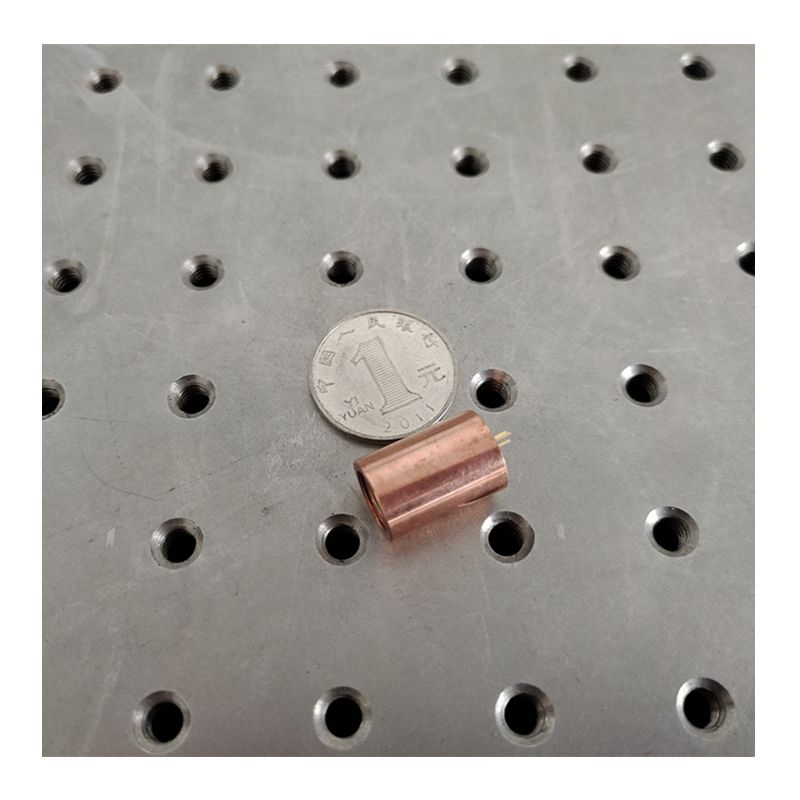

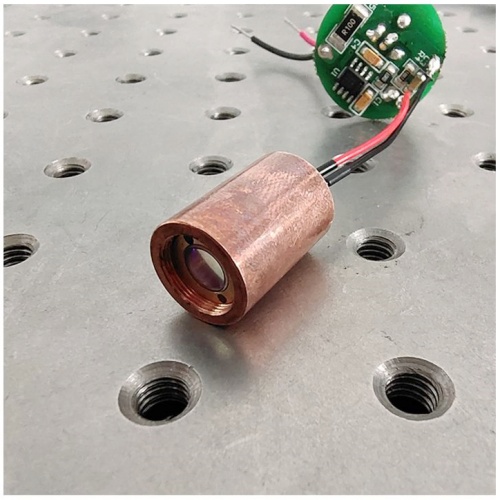

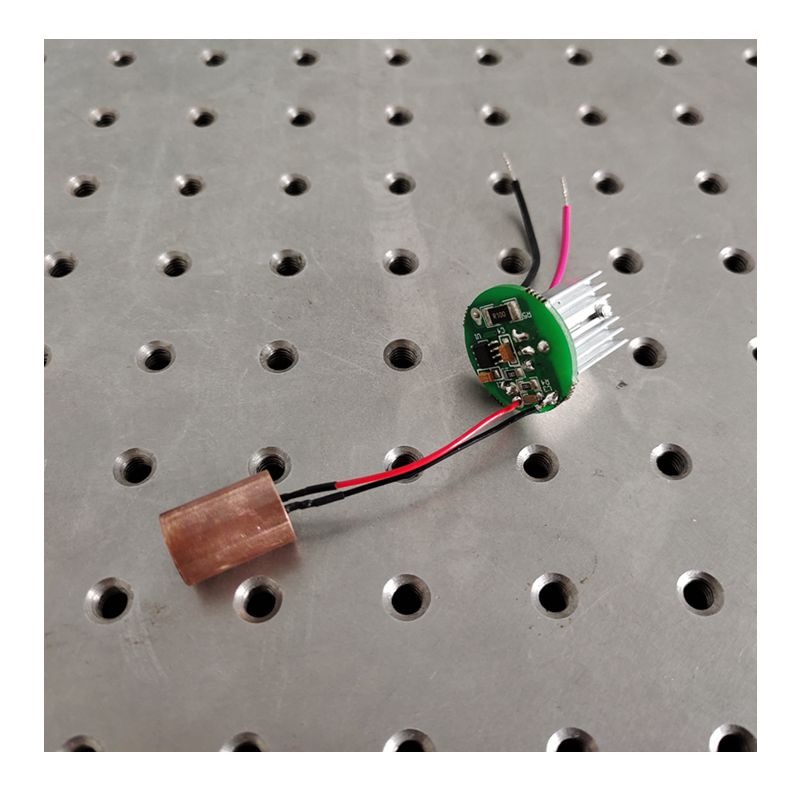

1064nm 200mW 500mW Size Mini Infrared Solid semiconductor Module With Driver Small
Model No:LSR1064MPL
Wavelength: 1064nm+/-1nm
linewidth FWHM: <2nm
Operation Mode: CW
Output Power: 200mW or 500mW
Spatial Mode,Near TEM00 for 200mW, TEM00 for 500mW
Beam Size:0.8mm * 0.6mm for 200mW, 0.6mm for 500mW
Beam Divergence full angle:3.3*3 mrad for 200mW, 3mrad for 500mW
Polarization: 100:1
Power Stability:1%@25℃
Beam Height:25mm/29mm
warm up time: < 1 minutes
Laser Head Dimensions：Φ13mmx19mm
Power Supply: Φ25mm * 22mm DC 2.5-3.3V Input
Lifetime, MTTF: 5,000 hrs
