1064nm 1000mW Passive Q-switched pulse laser generator digital display adjustable power supply

1064nm 1000mW Passive Q-switched pulse laser generator digital display adjustable power supply

peculiarity
Passive Q-switched
repetition rate is adjustable

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR1064HY-Q
Wavelength:1064nm
Spatial Mode: TEM00
Average Output Power: 1000mW
Average Power Stability : 3% per 2hrs
Single Pulse Energy: 80UJ（1-100UJ Optional）
Working Mode: Passive Q-Switched Pulse
Pulse Width : 20ns（10-30ns Optional）
Peak Power:500W-5000W
Repeat Rate:12KHz（10KHz-30KHz Optional）
Modulation signal:0-50KHz
Beam Spot Shape:Circular .aspect.ratio<1.1:1
Pointing Stability:<0.05 mrad
Beam Diameter(1/e2):<1.5mm
Beam Divergence: <1.5  mrad
Power Stability*:<±3% per 2hrs
Beam Height:29mm
Temperature Stabilizing :TEC
Warm-up Time :5min
Beam Quality m2:<2
Operation Temperature (°C)： 20~30°C
Storage Temperature:10~50oC
MTTF** :10,000 hrs
Dimensions ：155(L)x77(W)x60(H) mm

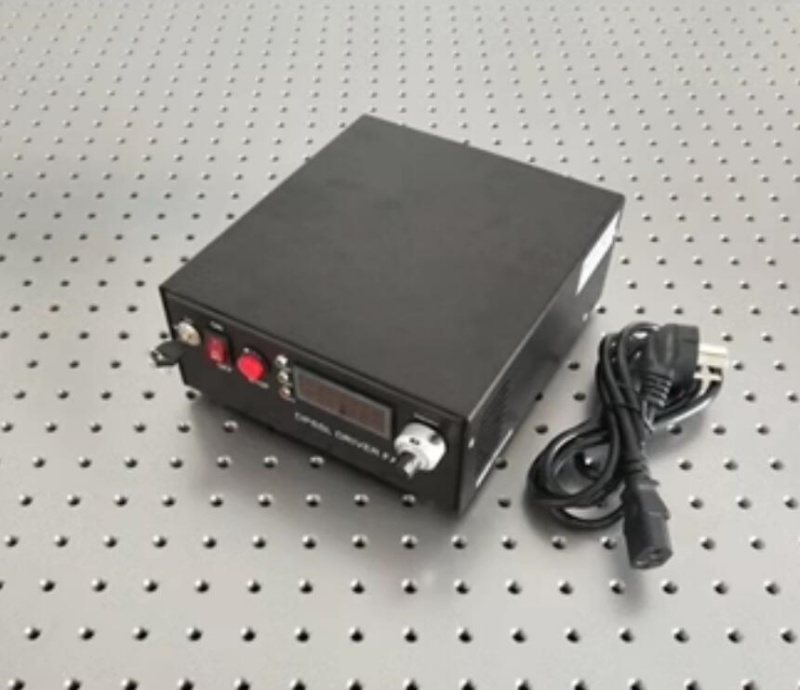

Adjustable power supply：LSR-PS-FA:178(W)x197(D)x84(H)mm3
Warranty Time 1 year

Add collimator and fiber coupling for $300
