10 concentric circles large circle lasers Infrared large circle laser light Circular laser positioning light

10 concentric circles large circle lasers Infrared large circle laser light Circular laser positioning light

Description

10 concentric circles
Laser line width: Adjustable
Laser beam brightness: Adjustable (Include a adjustabel laser power supply)
Red/Green/Blue laser can be selected.

Advantage：
1. high brightness of indoor and outdoor general;
2. the light is bright and soft and not dazzling;
3. the ring width can be adjusted to meet your different requirements;
4. the shell for the aviation aluminum insulation paint can be fully heat and can be anti shock and anti static.

10 concentric circles：
At 50cm distance: Outer circle diameter 63cm /   The inner circle diameter is 6.3cm / The spacing between the circles is 3.15 cm
At 100cm distance: Outer circle diameter 126cm /   The inner circle diameter is 12.6cm / The spacing between the circles is 6.3 cm
At 150cm distance: Outer circle diameter 189cm /   The inner circle diameter is 18.9cm / The spacing between the circles is 9.45 cm

Installation height of 0 meters – 5 meters can be used (external structure, adjustable width, easy to use)

Specifications:
Wavelength: 650nm red laser/520nm green laser/450nm blue laser(Can be choose)
Output power: 100mw(Default)
Working voltage: DC 2.8~5.2V (Accept customize)
Woking Current: <500mA
Laser Shape: 100% uniform linewidth and collimation line;

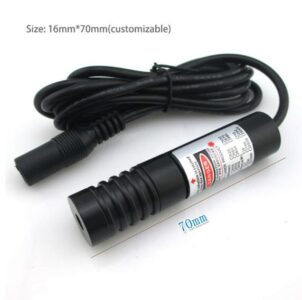

Size: φ16*70mm (can be customized)
Optical lens: grating (imported from Germany)

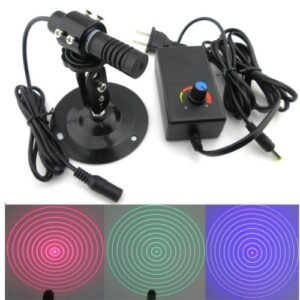

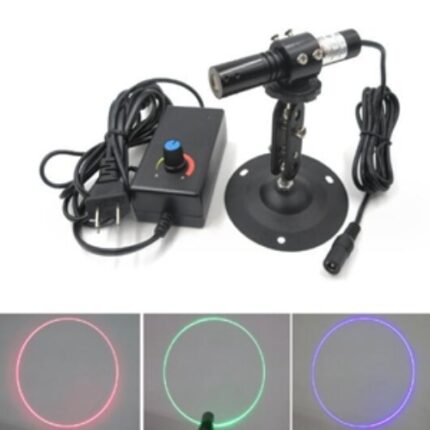

Package includes:
1* laser module;
1* laser bracket;
1* adjustable power supply.
